A Kelwerk product · Android

WeaveMetric Studio

Thread density, yarn count and GSM from your phone. Photograph the fabric, get warp and weft counts in seconds, and check them on the marked-up photo.

Request a demo COMING SOON TO GOOGLE PLAY

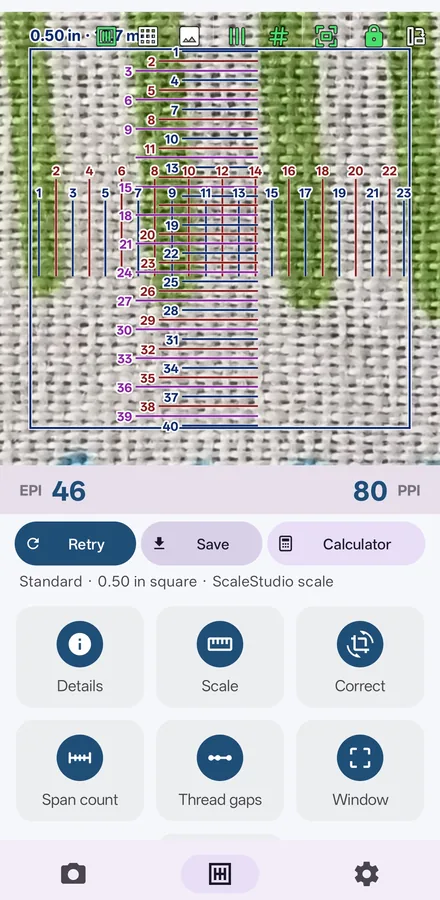

WeaveMetric Studio showing a counted woven fabric: every warp and weft thread numbered on the photo, with 46 EPI and 80 PPI

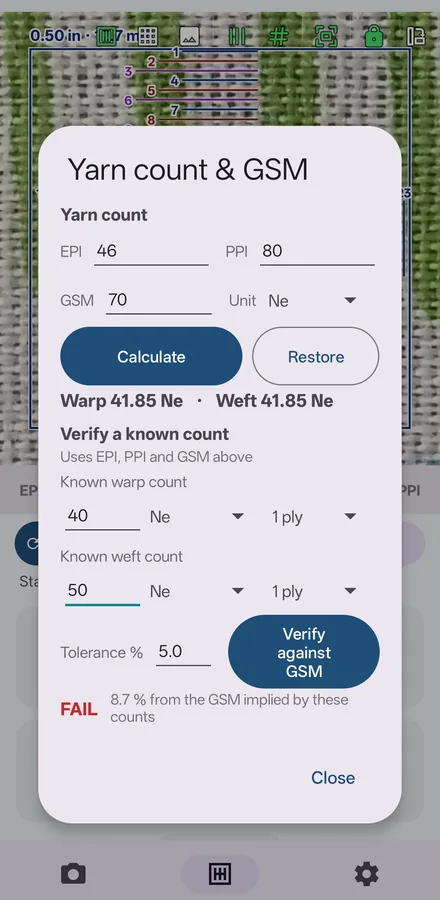

The yarn count and GSM calculator in WeaveMetric Studio: 41.85 Ne for warp and weft from 46 EPI, 80 PPI and 70 GSM, with known counts checked against the GSM

Thread density

EPI and PPI you can check

Warp ends and weft picks per inch from one photo, with every counted thread marked.

Counts warp (ends per inch) and weft (picks per inch) from one photo, in seconds.

Marks and numbers every counted thread, so anyone can check the result.

Corrects rotation and skew automatically, with manual correction when you want it.

Flags threads it is unsure about, so you know where to look.

Polyester satin

Counts the fabric a pick glass can't

Polyester satin hides its interlacings under long, glossy floats of dense filament yarn, so manual counting is slow and unreliable. A dedicated satin method reads the weave itself, then counts and marks every end and pick.

Reads the weave

Finds the floats and ends per repeat, with a weave diagram you can check.

Counting methods

One method for most fabrics

The Standard method handles most woven fabrics on its own, and satin has a dedicated method. For the occasional special case, such as bold colour stripes or slubby yarns, extra methods are a tap away in the app.

Standard

DEFAULT

Most woven fabrics: plain, twill, shirting, suiting, denim and more.

Satin

Satin and sateen weaves, including polyester satin.

GSM

GSM from any cut piece

No perfectly cut circle needed. The app measures the exact area of a piece of any shape, so it reduces, and often removes, the need for a GSM cutter. You still weigh the piece on your balance.

01Cut a piece of fabric and lay it flat on a plain sheet under your phone.

02Take a photo. The app measures its area with your phone's calibration and draws the measured outline.

03Enter the weight from your weighing balance and get the GSM.

Already use a GSM cutter? Enter the weight and get the GSM directly.

Yarn count

Yarn count calculator

Turns thread density and GSM into yarn count, or checks a declared count.

Estimate the average yarn count from EPI, PPI and GSM.

Verify a known warp and weft count against the GSM, within a tolerance you set.

Units: cotton count (Ne), linen count (lea), worsted count, metric count (Nm), tex and denier; single to 3-ply.

Today it applies when warp and weft use the same yarn, or yarns of the same material.

Tools

Check, adjust and record

Window

Count only inside an area you choose.

Span count

Count the threads between two points you pick.

Thread gaps

Tap thread centres to measure spacing yourself.

Satin reading

Floats and ends per repeat, with a weave diagram.

Measure

Measure distances on the fabric.

Save

Keep the marked-up photo as a record on your phone.

Calibration

One-time set-up, true real-world scale

A guided calibration with our printed chessboard sheet corrects your camera's lens distortion and learns how its focus relates to distance, so every count and every GSM area uses true real-world scale. Calibration files for popular phones will also be available in the app.

Calibration sheet (PDF): A4 · US Letter

What you need

An Android phone with Android 10 or newer

An internet connection

A phone stand, recommended for best results (a steady hand also works)

The printed calibration sheet (free download)

For GSM: a weighing balance

Plans

Start free, then choose what fits

START

Free trial

Try every feature in the app. Need more time to evaluate? Request an extension in the app.

INDIVIDUAL

Monthly subscription

Through Google Play, inside the app.

TEAMS

Company plans

Several devices and custom durations, priced by quotation, with an on-site demo on request.

Ask for a quotation

Your data

Your results stay on your phone

Photos are sent to our servers only to compute your result, then deleted automatically, normally within 20 minutes.

Analysed images and results are saved only on your phone, never on our servers.

Account details are used only to run your account and support you. See our Privacy Policy.

Coming next

Already in development

Twist per inch (TPI)

Yarn twist measured from images.

Composition assistant

Estimate cotton and linen composition in less time.

Mixed yarn counts

Separate warp and weft counts, even when they differ in count and in fibre.

Knitted fabrics

Wales and courses per inch (WPI / CPI).

Timing may change while these are in development.

See it on your own fabric

We'll demonstrate WeaveMetric Studio on your samples. Pick a date that suits you.

Request a demo
